DOORS
FLUSH DOOR
IS:2202-(Part-1, 1999)
Flush Doors are Premium doors made from selected timber species by a mechanized manufacturing process which offers uniform thickness without any undulation and smooth surface for lamination. It is treated with durable preservatives using Vacuum Pressure Treatment (VPT) and then Kiln dried to ensure perfect bonding and dimensional stability. High Quality Phenol Formaldehyde (PF) resins are used to get the desired boiled water resistant quality. The doors are also guaranteed against warping, bulging, shrinkage, brittleness and cracks.
| Thickness(MM) | 25 | 30 | 32 | 35 | 38 | 40 |
|---|
Technical Specification
| Test Prescribed in IS:2202-(Part-1, 1999) | Minimum Value for Conformity | Observed Value |
|---|---|---|
| General Fitness Test as per IS:4020 (Part 3), 1998 | Squareness measured | Confirmed |
| Local Planeness Test as per IS:4020 (Part 4), 1998 | Planeness measured to ah accuracy of 0.1 m | Confirmed |
| Dimension and Squareness Test as per IS: 4020 (Part 2), 1998 | Height and Width measured within an accuracy of 1.0 mm | Confirmed |
| Impact indentation Test as per IS: 4020 (Part 5), 1998 | Indentation Measured to an accuracy of 0.1 mm | Confirmed |
| Edge Loading Test as per IS: 4020 (Part 7). 1998 | The deflection measured to an accuracy of 0.1 mm | Confirmed |
| Flexure Test as per IS: 4020 (Part 6), 1998 | The deflection measured to an accuracy of 0.1 mm | Confirmed |
| Slamming Test as per IS: 4020 (Part 10), 1998 | 50 times on the nail at the rate of 4-5 dropl min | Confirmed |
| Buckling Test as per IS: 4020 (Part 9). 1998 | Deformation measured to an accuracy of 1mm, 5 min. after application of the load and 15 min. after unloading | Confirmed |
| Shock Resistance Test as per IS: 4020 (Part 8), 1998 | 4 to 5 shocks minimum | Confirmed |
| Misuse Test as per IS: 4020 (Part 11), 1998 | Should pass after applying 2OON force to the handle at right angles | Confirmed |
| End Immersion Test as per IS:4020 (Part 13), 1998 | No-delamination | No-delamination found |
| Varying Humidity Test as per IS: 4020 (Part 12), 1998 | ‘Deviation measures to an accuracy of 1 .0 mm | Confirmed |
| Knief Test as per IS: 4020 (Part 14) 1998 | Minimum Pass Standard | Excellent Standard |
| Screw Withdraw as per IS: 4020 (Part 16), 1998 | Applied load should be 2.0 mm per min for complete withdrawal of the screw | Confirmed |
| Glue Adhesive Test as per IS: 4020 (Part 15), 1998 | There shall be no-delamination | No-delamination found |

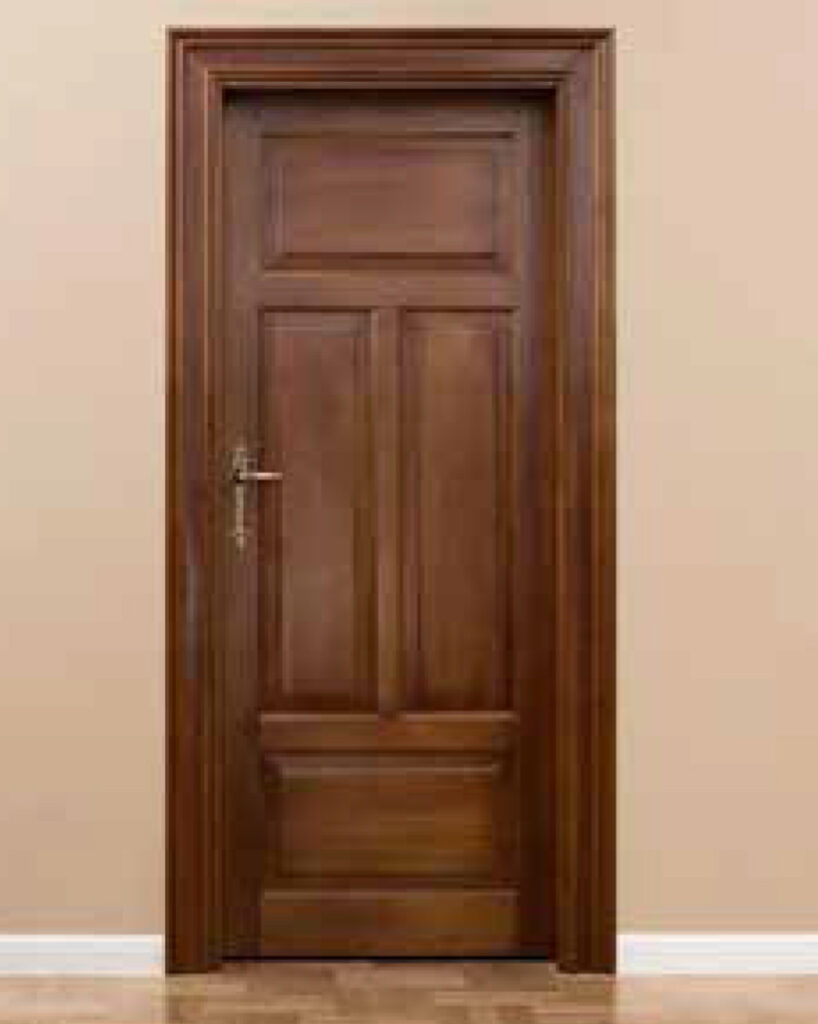

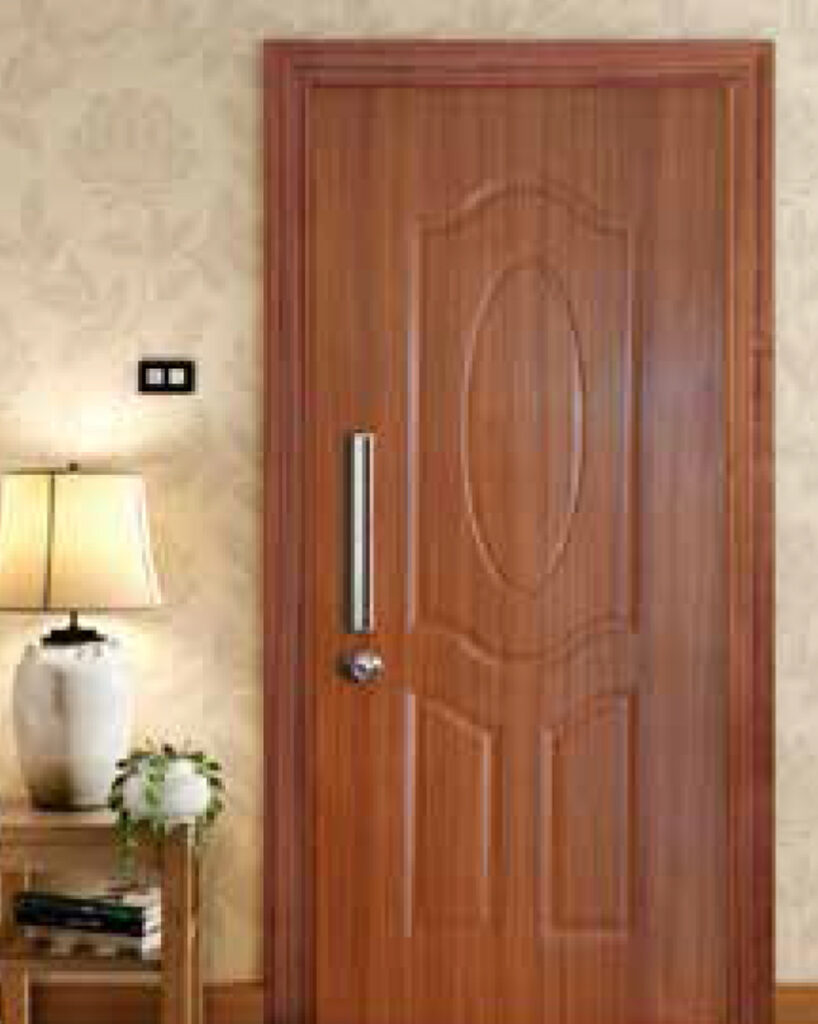

MOULDED PANEL SKIN DOORS
Moulded Panel Skin Doors are manufactured using imported high quality high density fiber (HDF) skins. Our collaboration with all leading branded skin manufacturers in the world gives you access to the entire original collection available in a variety of styles, finishes and textures. These moulded panel skin doors offers superior design, comprehensive workmanship and highly durable quality. We use only 100% borer resistant, Vacuum Pressure Treated (VPT) finger jointed frames, which is a highlighting feature of these skin doors.
Technical Specification
2 PANEL TEAK |
2 PANEL CASPIAN |
2 PANEL HORIZON |
3 PANEL TEAK |
3 PANEL OVEL |
3 PANEL TEAK LAMINATED |
4 PANEL OCEANIC |
4 PANEL MEDITERRANEAN |
MEMBRANE DOORS
Cera PVC Mounded Membrance Doors are manufactured from Routered Solid Flush doors (Double Core) and cladded with Imported Rigid PVC Membrane Film of varying designer shades.
These doors are zero maintenance doors are it is a ready to use door with no additional polishing or varnishing or painting required. Also comes with a choice to have PVC laminated on both sides of the panel or a single side as per requirement
| Standard Thickness (mm) | 25 | 30 | 35 | 40 | |||
|---|---|---|---|---|---|---|---|
| Standard width (Inch) | 27 | 30 | 33 | 38 | 40 | ||
| Standard length (Inch) | 78 | 81 | 84 | Customized Sizes | |||
Shades available
THAI TEAK , JUNGLE TEAK , DARK VENGE , ROSE WOOD , CHERRY
|
|
